云原生之使用Docker部署Nas-Cab个人NAS平台

[root@jeven ~]# systemctl status docker
● docker.service - Docker Application Container Engine
   Loaded: loaded (/usr/lib/systemd/system/docker.service; enabled; vendor preset: disabled)
   Active: active (running) since Sun 2023-09-17 01:00:41 CST; 2h 12min ago
     Docs: https://docs.docker.com
 Main PID: 9940 (dockerd)
    Tasks: 54
   Memory: 187.9M
   CGroup: /system.slice/docker.service

3.2 检查Docker版本

检查Docker版本

[root@jeven ~]# docker -v
Docker version 20.10.17, build 100c701

3.3 检查docker compose 版本

检查Docker compose版本，确保2.0以上版本。

[[root@jeven ~]# docker compose version
Docker Compose version v2.19.1

四、下载Nas-Cab镜像

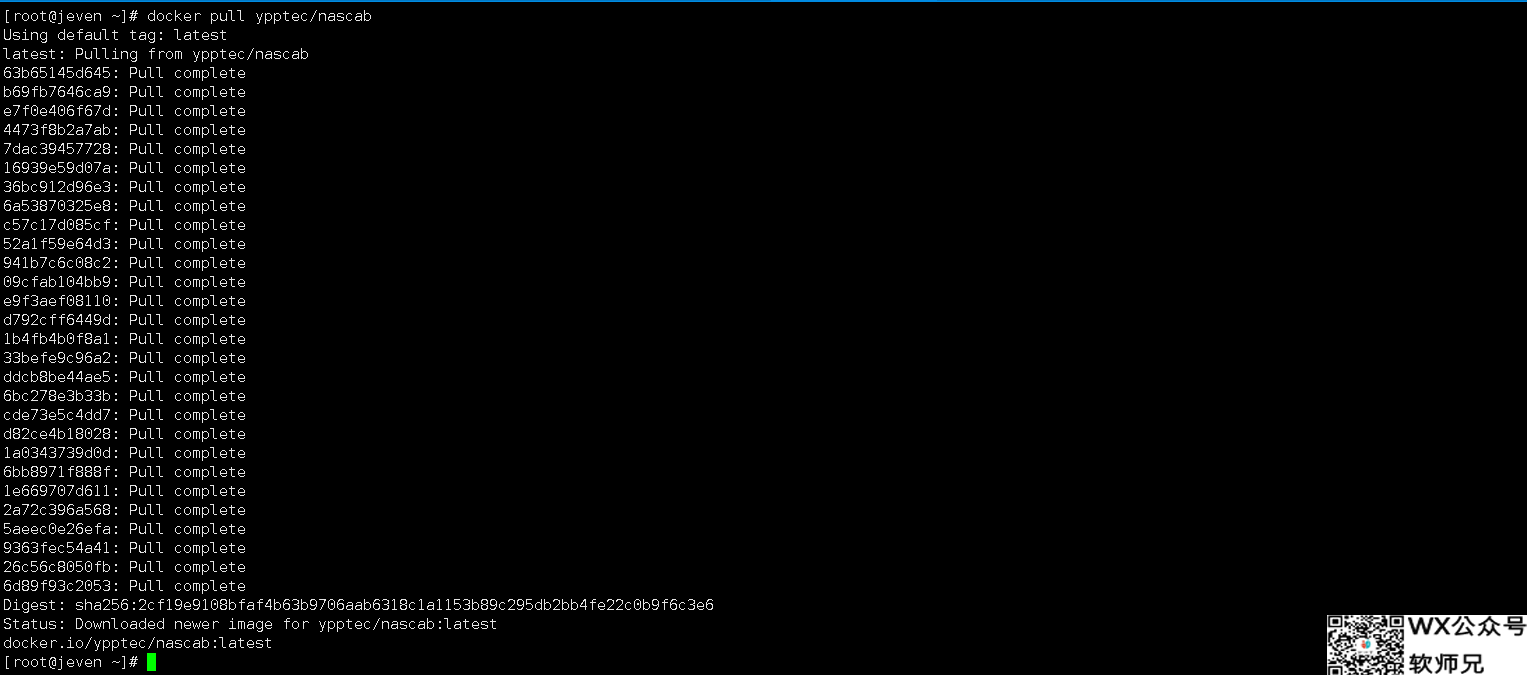

从docker hub拉取Nas-Cab镜像

docker pull ypptec/nascab

在这里插入图片描述

五、部署Nas-Cab

5.1 创建挂载目录

创建挂载目录/data/nascab

mkdir -p /data/nascab &&  cd /data/nascab/

5.2 创建Nas-Cab容器

创建Nas-Cab容器

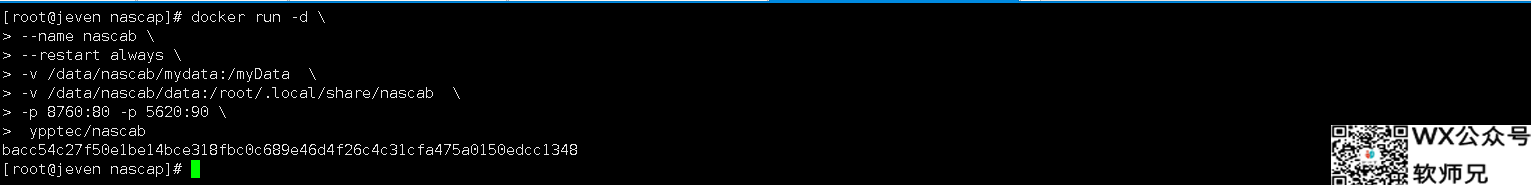

docker run -d \
--name nascab \
--restart always \
-v /data/nascab/mydata:/myData  \
-v /data/nascab/data:/root/.local/share/nascab  \
-p 8760:80 -p 5620:90 \
 ypptec/nascab

备注：

1.NasCab的数据库和缓存目录为/root/.local/share/nascab
2.将8760端口作为NasCab的服务端口,
3.将5620作为Webdav服务端口,

在这里插入图片描述

5.3 检查容器状态

检查nascab容器状态，确保容器正常启动。

[root@jeven nascap]# docker ps
CONTAINER ID   IMAGE                                        COMMAND                  CREATED          STATUS                 PORTS                                                   NAMES
bacc54c27f50   ypptec/nascab                                "bytenode /nascab/ap…"   45 seconds ago   Up 45 seconds          21/tcp, 443/tcp, 0.0.0.0:8760->80/tcp, :::8760->80/tcp, 0.0.0.0:5620->90/tcp, :::5620->90/tcp   nascab

5.4 检查容器运行日志

检查容器运行日志，确保Nas-Cab服务正常启动。

[root@jeven nascap]# docker logs nascab
Run in docker
Run in docker
NasCab api thread count: 2
http service is running,port:  80
https service is running,port: 443
http service is running,port:  80
https service is running,port: 443
NFO Worker closed
